The Car Steering Wheel Clock Spring OEM#934903R311 is compatible
with several models, including but not limited to:
KIA CEED
KIA K5
Hyundai i40
and potentially other models that share the same electrical and
airbag system components.
Here are some details about the clock spring:
Function: The clock spring ensures that the electrical connections
to the steering wheel are not interrupted when the wheel is turned.
It does this through a set of spiral wires that expand and contract
with the movement of the steering wheel.
Replacement: Clock springs may need to be replaced if they are
damaged, worn out, or if the vehicle's airbag system triggers a
fault related to the steering wheel's electrical connections.
Installation: Replacing a clock spring usually requires
disassembling part of the steering wheel or the dashboard to access
the component. It is a complex process that involves handling
sensitive safety equipment, so it should be performed by a trained
professional.
Safety: Since the clock spring is a part of the vehicle's safety
system, it is crucial to ensure that the replacement part is
genuine and that it is installed correctly to avoid any risks
associated with airbag deployment.
Product description:

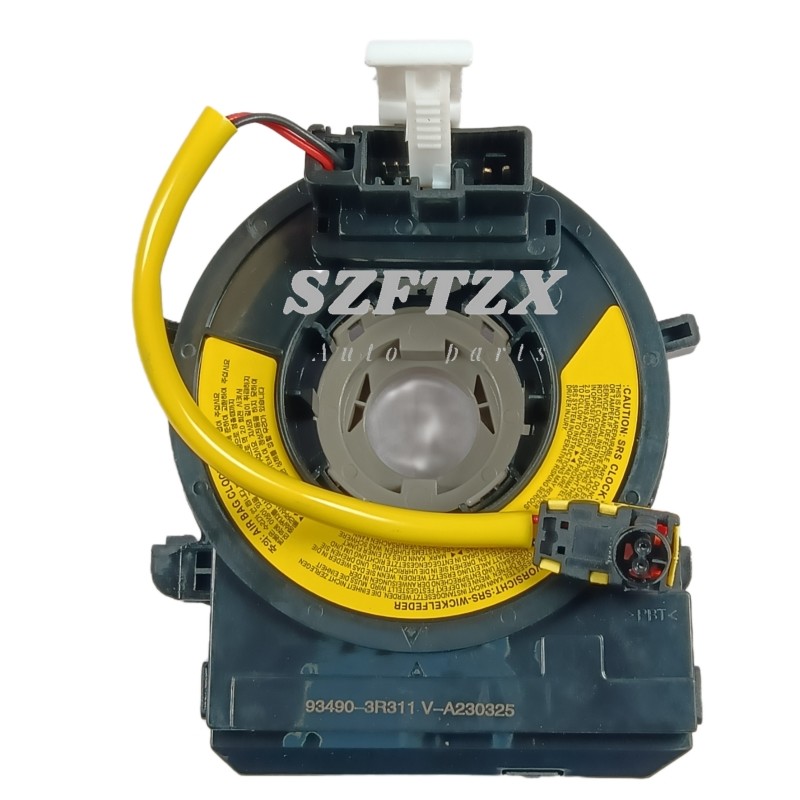

This is Car Steering Wheel Clock Spring OEM#934903R311 93490-3R311 Brand New Unopened
Clock Spring Sensor for KIA CEED K5 Hyundai i40 and more models.
Trade Name
| Clock Spring |
OEM Number
| 934903R311 93490-3R311 |
Applicable models | 2011-2013 Kia Optima 2012 Kia Ceed 2012 Kia K5 2012 Kia Cadenza 2011 Hyundai i40 |
Installation precautions:
① Confirm that the front wheels are in a straight state;
② Ensure that the connector on the clock spring rotor is in the 6
o'clock or 12 o'clock position, the neutral pin is locked, the ↓↑
mark is aligned, and a single white flat cable can be seen from the
neutral window.
③ The three pins of the clock spring and the combination switch need
to be installed and tightened in place. After assembly, they should
not be loose or easily come off
④ Fix the clock spring pigtail connector buckle in the buckle hole of
the pipe column bracket to ensure it is securely fastened; The
clock spring pigtail wire connector is firmly connected to the wire
harness connector, and a "click" sound is heard. Pull the connector
to check and ensure it is securely inserted
⑤ When assembling the steering wheel, disconnect the neutral pin
according to Figure 14 (S6-5828100 (A) is for pulling out the
neutral pin), and during the assembly process, the clock spring
does not rotate significantly
⑥ After assembling the steering wheel, firmly connect the small wire
of the steering wheel to the clock spring connector. If you hear a
"click" sound, pull the connector to check and ensure it is
securely inserted
⑦ Connect the DAB small wire connector to the DAB and press the
yellow locking buckle to lock it in place
