Brand High Quality Clock Spring 934902P110 for Hyundai i20 KIA
Sorento
1. Product Overview
Product model: Clock Spring 934902P110
Applicable models: Hyundai i20 and KIA Sorento
Quality standard: OEM standard, Brand High Quality
Production location: Beijing, China (specific manufacturer needs to
be further investigated)
2, Product Features
High quality: Complies with OEM standards, which means that the
product is comparable in quality and performance to original
accessories, ensuring the safety and reliability of the vehicle.
Adaptability: Designed specifically for the Hyundai i20 and KIA
Sorento models, ensuring a perfect match and easy installation.
Durability: Made of high-quality materials, it has a long service life and
stable performance.
In summary, the OEM standard Brand High Quality Clock Spring
934902P110 for Hyundai i20 KIA Sorento produced in Beijing, China
is a high-quality and highly adaptable automotive accessory.
Product description:

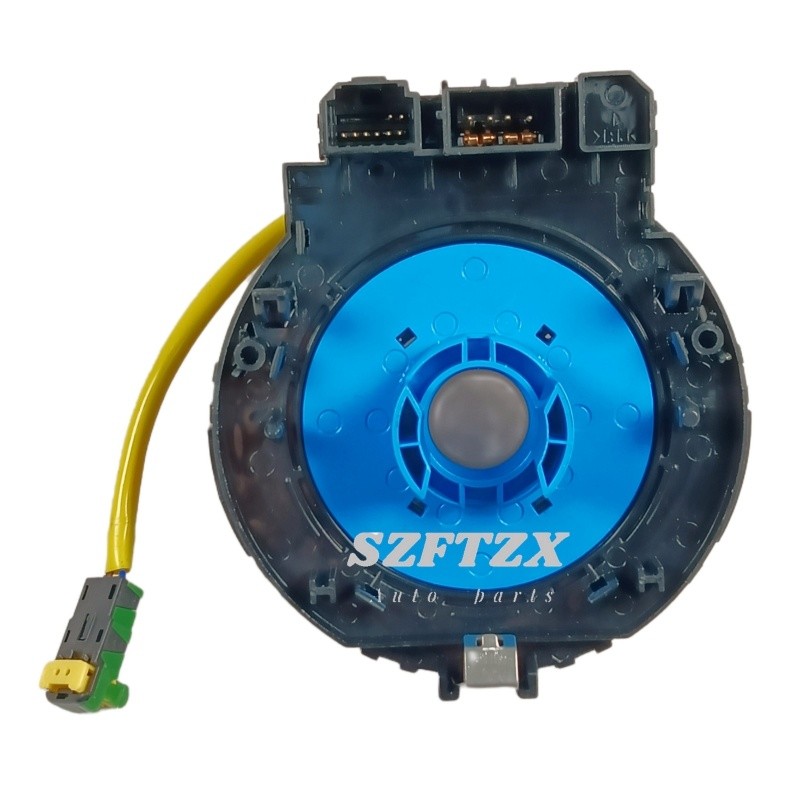

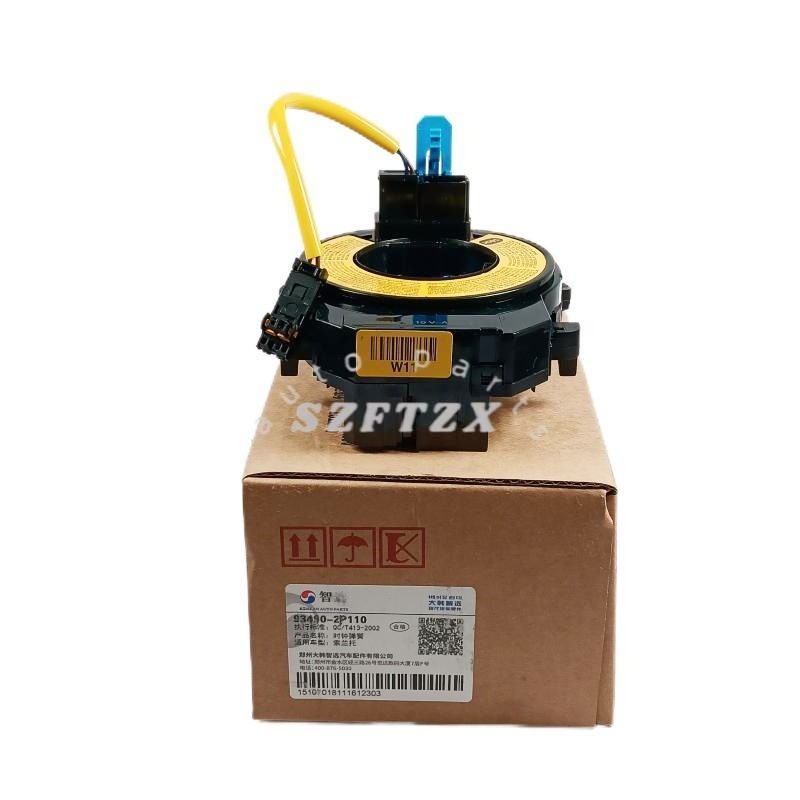

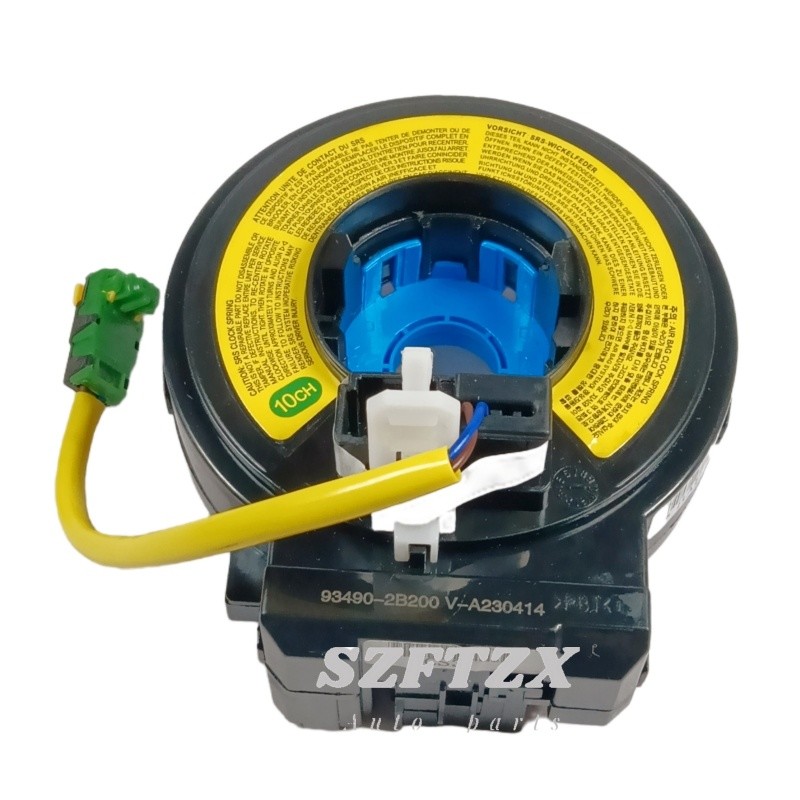

This is Car Steering Wheel Clock Spring OEM#934902p110 93490-2P110
Brand New Unopened
Clock Spring Sensor for KIA Sorento Hyundai i20 and more models.
Trade Name
| Clock Spring |
OEM Number
| 934902P110 93490-2P110 |
Applicable models | 2012-2014 KIA SORENTO 2012-2013 Hyundai i20 |
Installation precautions:
① Confirm that the front wheels are in a straight state;
② Ensure that the connector on the clock spring rotor is in the 6
o'clock or 12 o'clock position, the neutral pin is locked, the ↓↑
mark is aligned, and a single white flat cable can be seen from the
neutral window.
③ The three pins of the clock spring and the combination switch need
to be installed and tightened in place. After assembly, they should
not be loose or easily come off
④ Fix the clock spring pigtail connector buckle in the buckle hole of
the pipe column bracket to ensure it is securely fastened; The
clock spring pigtail wire connector is firmly connected to the wire
harness connector, and a "click" sound is heard. Pull the connector
to check and ensure it is securely inserted
⑤ When assembling the steering wheel, disconnect the neutral pin
according to Figure 14 (S6-5828100 (A) is for pulling out the
neutral pin), and during the assembly process, the clock spring
does not rotate significantly
⑥ After assembling the steering wheel, firmly connect the small wire
of the steering wheel to the clock spring connector. If you hear a
"click" sound, pull the connector to check and ensure it is
securely inserted
⑦ Connect the DAB small wire connector to the DAB and press the
yellow locking buckle to lock it in place
